CanAGRO Augers for All Seasons - From Factory to Farm

For four decades, German-based CanAGRO GmbH has been a dedicated manufacturer of grain, seed and fertiliser-handling technology and is widely known for it’s superb canagro logo 200x80engineering abilities. CanAGRO’s product range has expanded to become the broadest and most comprehensive across the whole of Europe and Russia.

Still a family led company, CanAGRO gets its' drive for excellence and understanding of customer’s needs from it’s own close connections with Agriculture.

Rear-Mounted Trailer Augers

GNA-GVA Series

Standard Auger Screws - GNA or GVA

Straight Auger Screws with reverse discharge.
The classic amongst the auger screws, for filling drilling machines and manure distributers with low auger heights. In galvanised steel (GNA) or Nirosta design (GVA).

HD Series

The HD Series

In larger operations, the HD range is a very flexible solution. When several trailers are in use for seeds and fertiliser transport, the HD Auger is a low-cost alternative. Instead of several fixed-mounted auger screws, the HD can be easily and quickly re-located by one person from trailer to trailer.

By tractor or 4x4, the HD can be quickly moved to another operation. By contrast, straight or lateral auger screws need to be dismantled, loaded and reinstalled. The flexible options of use, therefore make them an all-rounder. Fitted with a robust undercarriage, spring-based axles, road permit and lighting, the transport behind a trailer is very easy. The HD with an overall length of 8 m can also be used as an alternative for loading grain and other materials onto trucks.

All HD models are Stainless Steel to prevent fertiliser and seed treatment corrosion.

UHV Series

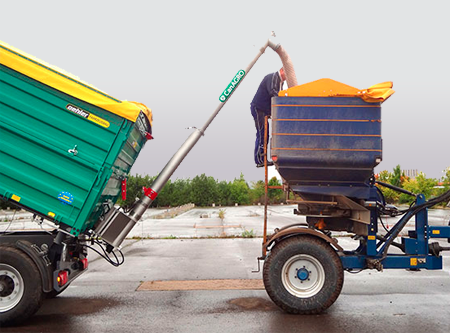

The UHV Range

High-performance screw conveyors with chassis. Auger screws with reverse discharge, mechanically foldable. For customers who wish to fill higher seed containers or fertilizer distributers and still prefer the reverse discharge.

Unlike the DF series, where the closed inlet system means that blocks in the feed are difficult to remove, the benefit of the UHV series is in the 800 mm wide open inlet hopper. This makes it easy to remove blockages.

Switch between various trailers can be easily achieved.

For road transport, the auger screw is secured with transport protection (rods). Despite a compact transport position, the auger screws of the UHV series enable a large range of working lengths.

CanAGRO DF Series

Mechanically foldable

The DF Series

Mechanically foldable and manual height-adjustable. The models range from 30 t/h (DF714V) up to 300 t/h (DF1615). This wide range, covers every size of operation from small scale filling of seed drills and fertilizer spreaders up to large scale grain chasing. In a folded position, the DF series is very compact for transport.

Compared to

Compared to models with reverse folding (GNA/GVA or UHV series), however, it must be mentioned that the initial installation with the DF series is slightly more cumbersome and the switching of trailer to trailer takes a little more time.

Reach

With this series, you reach, regardless of the screw length, maximum auger heights (e.g. for loading to trucks during harvest) and essential lateral width (for filling seed drills)

In a folded position, the DF Series are very compact for transport.

Tubular Belt Conveyor, Self-Filling, Special Design, De-Mount and Mobile Loading

Tubular Belt Conveyors

Tubular Belt Conveyors

combine the advantages of auger and conveyor. They are ideal for transfer of wood chips and sawdust, as well as all combinable crops. A conveyor belt running in a tube combines the benefits of screw conveyor and belt conveyor with a long life and running power due to few mechanical wearing parts. For a conventional belt conveyor, a large number of rollers and ball bearings are used, for a grain screw conveyor the mechanical attrition is greater.

The running powers until the belt is worn out - amount up to 200,000 tonnes.
The belt speed ensures that material is thrown 1-2m beyond the outlet. As such, the height of storage can be greatly increased.

Special Design Auger Screws

Special Design Auger Screws

On the basis of the consistently growing material and kit pool of parts of the installation screw and standard auger screw programme, more individual solutions can also be increasingly made.

Started from the various funnel variants, hinge and joint options for flapping, various discharge options with a Y or without, as well as switchable or nor, in steel or stainless steel and in various tube diameters and lengths, a large belt width is possible.



Self-filling Augers

Self Filling Augers

CanAGRO has produced numerous variations of augers for seed drills and fertilizer spreaders over many years.

In 2007, Maschio/ Gaspardo single corn-drilling machines were fitted with purpose-built filling Augers. Lemken drilling machines were also subsequently fitted with filling augers.

Thanks to good cooperation with Väderstad, Pöttinger and Kuhn, further variations have since been added.

Augers are made in standard steel or stainless steel with diameters of 150, 170 and 200 mm and in variable lengths as required.

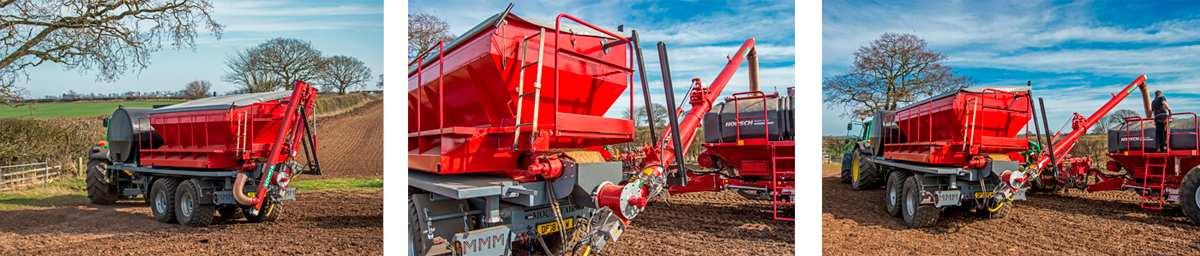

Mobile Loading Unit

The Mobile Loading Unit

can be used for many applications, in particular, as a field-side loader in harvest that can be easily transported by tractor or 4x4. CanAGRO is currently developing various design studies for mobile loading units for energy-independent and flexible transfer of bulk goods.

The basic variant here always consists of a fill-in funnel installed on a chassis and an upstream laterally and hydraulically unfoldable and height-adjustable auger screw.

Also, various feed-in funnel designs are available, for instance 6-7 m long feed-in funnels for lateral tilting, as well as models with 2800 mm wide feed-in funnels for straight, reverse starting and tilting of rear and skip trucks.

The drive is powered by PTO of the tractor.

De-Mount Auger Systems

De-Mount Auger Systems

can be used for many applications from Chaff spreading to livestock feeding.

To adjust the output, a hydraulically operated pusher is fitted in front of the cross-screw. The drive of the cross-screw is provided by means of a hydraulic engine, the drive of the auger screw drives through the PTO.

Tube diameter auger screw: 400mm, 500mm
Capacity: up to 300t/h or up to 500t/h

A Message from Steve

A Message from Steve

Here, we've given you just a taster of what CanAGRO has to offer you. If you want to see the full product line with all the details, just visit CanAGRO.

Or,  why not view all their products in action on the CanAGRO YouTube Channel.

And, of course, you can always talk to me. I'll be happy to answer any questions you might have.
